Duotone Wing Mast AL 3BS QM (Mono)
Out of stock

Duotone Wing

Duotone Wing Mast AL 3BS QM (Mono)

€419.00

Variant

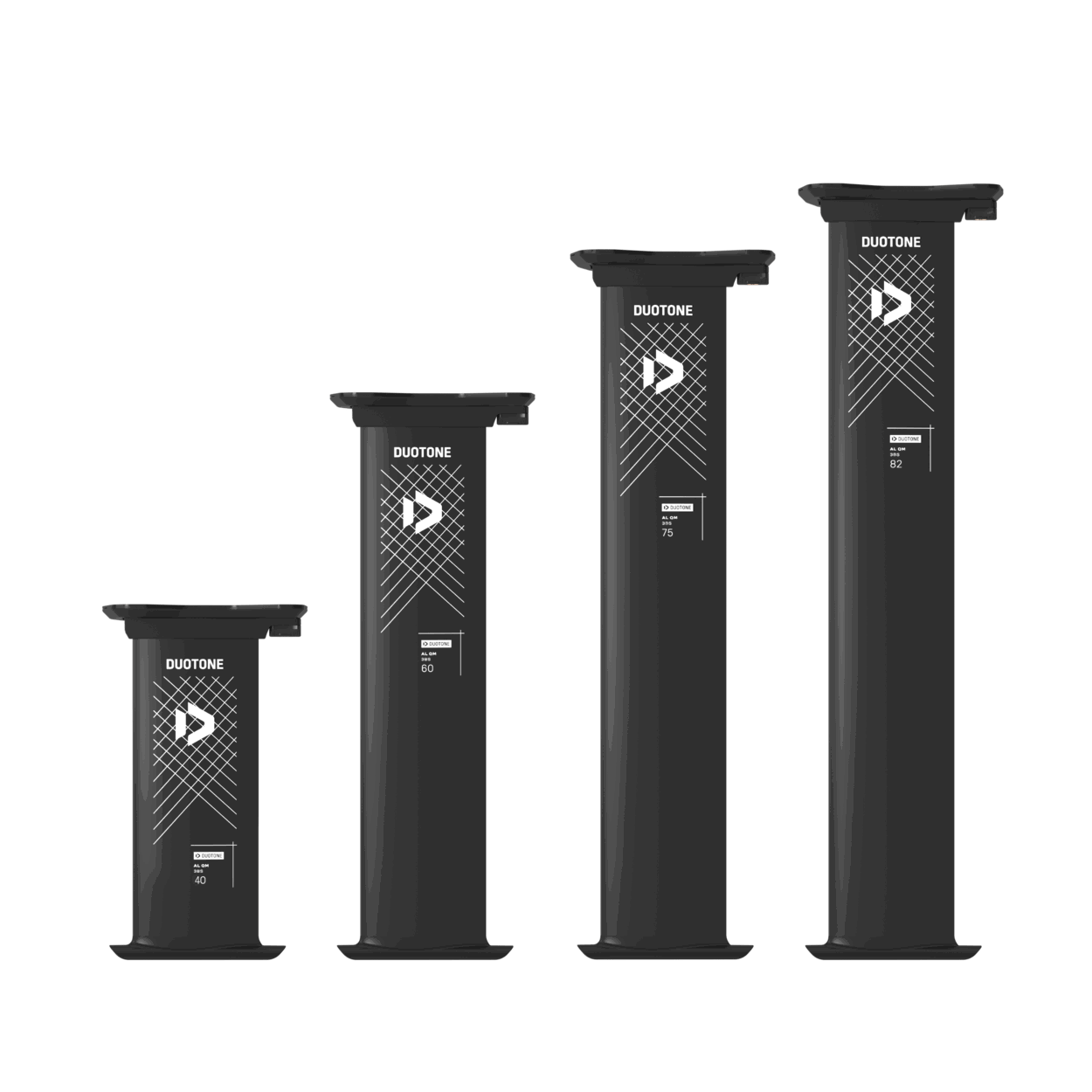

Revolutionize your foiling setup with the Mast AL QM 3BS. No tools, no hassle – attach and detach your foil with a simple tool-free one-screw solution, leaving your base plate in your preferred position for your next session.Equipped with the new AL 3BS+ connection, this mast maximizes compatibility across the Duotone foil range. Its Mono Claw design and standard foil mounting dimensions deliver the same force admission as our standard aluminum plate, ensuring top-tier performance.Available in 40cm, 60cm, 75cm, 82cm lengths, it's compatible with Duotone Aero AL 3BS fuselages and D/LAB foils with fuselage tail.Built with durability in mind, the Helicoil threads ensure maximum strength connections. The Mast AL QM 3BS is your gateway to hassle-free, high-performance foiling across all disciplines.

PayPal Card Apple Pay Bank transfer
← Back to Foil

Description

Revolutionize your foiling setup with the Mast AL QM 3BS. No tools, no hassle – attach and detach your foil with a simple tool-free one-screw solution, leaving your base plate in your preferred position for your next session.Equipped with the new AL 3BS+ connection, this mast maximizes compatibility across the Duotone foil range. Its Mono Claw design and standard foil mounting dimensions deliver the same force admission as our standard aluminum plate, ensuring top-tier performance.Available in 40cm, 60cm, 75cm, 82cm lengths, it's compatible with Duotone Aero AL 3BS fuselages and D/LAB foils with fuselage tail.Built with durability in mind, the Helicoil threads ensure maximum strength connections. The Mast AL QM 3BS is your gateway to hassle-free, high-performance foiling across all disciplines.

Caratteristiche

  • Compatibility: Seamlessly works with Duotone Aero AL 3BS and D/LAB fuselages, expanding setup options for various riding styles.
  • Connectivity: AL 3BS+ connection maximizes compatibility across the Duotone foil range.
  • Durability: Helicoil-threads ensure long-lasting and maximum strength connections, enhancing the overall lifespan of the mast.
  • Efficiency: Fast and easy foil mounting without tools allows for quick setup.
  • Mono Claw design: Mono Claw design with standard foil mounting dimensions ensures the same force admission as standard aluminum plates.
  • Versatility: Fast and easy foil mounting without tools allows for quick setup.

Scheda tecnica

Lenght (cm)40607582
Chord (mm)135135135135
Thickness (thinnest point in mm)18.218.218.218.2
Weight (kg / TOLERANCE: +/- 5% POSSIBLE)TBCTBC2.422.56
Screws 3BS2x M8x60 TX45 + Middle M8x35 TX452x M8x60 TX45 + Middle M8x35 TX452x M8x60 TX45 + Middle M8x35 TX452x M8x60 TX45 + Middle M8x35 TX45
Rec. Torque15Nm M815Nm M815Nm M815Nm M8
ConstructionAerospace grade AluminiumAerospace grade AluminiumAerospace grade AluminiumAerospace grade Aluminium
DisciplinesWing, Prone, Kite, SUP, Downwind, PumpWing, Prone, Kite, SUP, Downwind, PumpWing, Prone, Kite, SUP, Downwind, PumpWing, Prone, Kite, SUP, Downwind, Pump, Windsurf
ConditionsBeginnerBeginner and flat waterFlat water lakes to small size surfAll water states - lakes to medium size surf
CharacterHassle free setup, easy, maneuverable, compact in the airHassle free setup, easy, maneuverable, compact in the airHassle free setup, easy, maneuverable, compact in the airHassle free setup, direct response, great allrounder
Compatibility FuselagesD/LAB Wings + Tail / Aero AL 3BS / Fanatic & Duotone CarbonD/LAB Wings + Tail / Aero AL 3BS / Fanatic & Duotone CarbonD/LAB Wings + Tail / Aero AL 3BS / Fanatic & Duotone CarbonD/LAB Wings + Tail / Aero AL 3BS / Fanatic & Duotone Carbon
