Duotone Wing Mast Aero Mid QM SLS
Out of stock

Duotone Wing

Duotone Wing Mast Aero Mid QM SLS

€1199.00

Variant

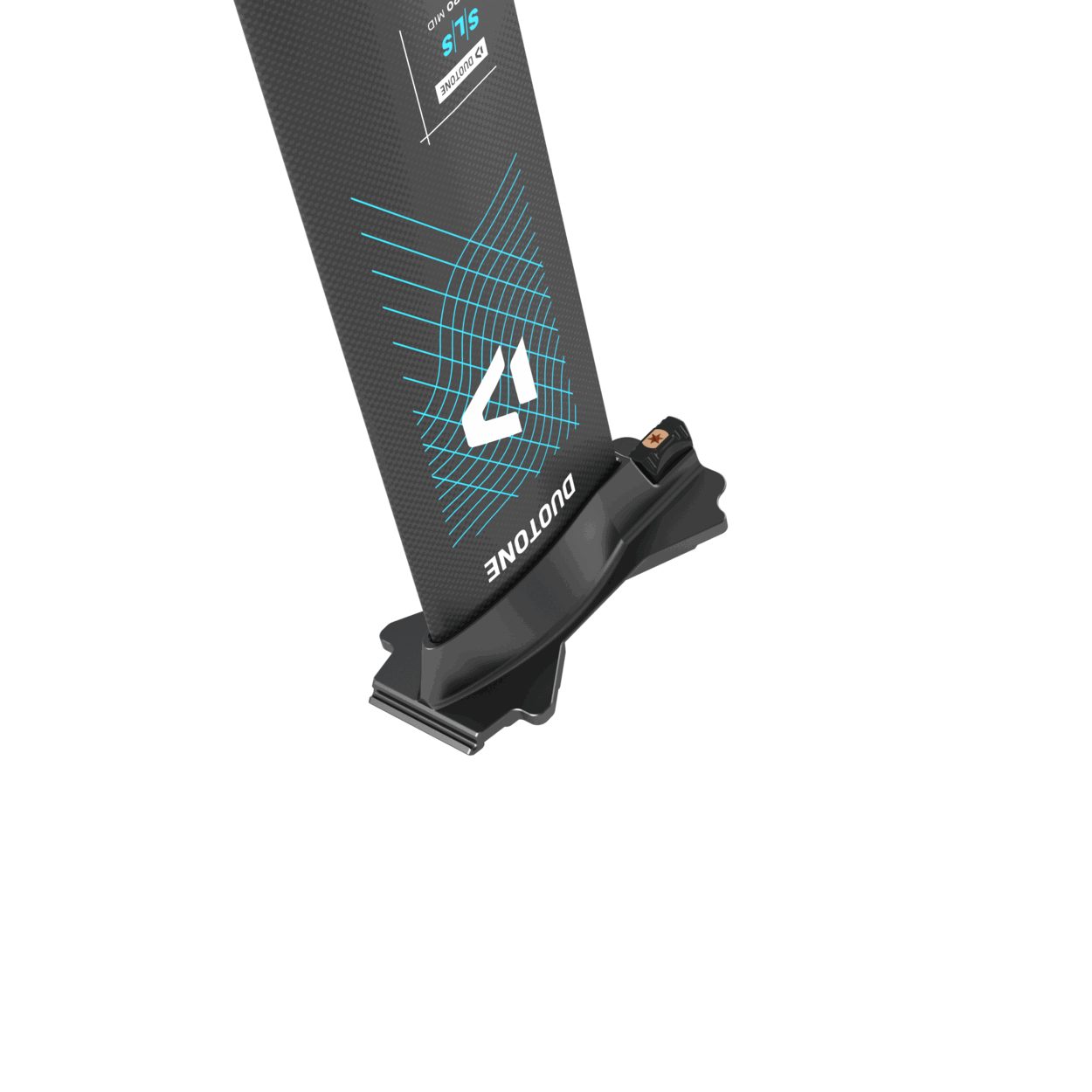

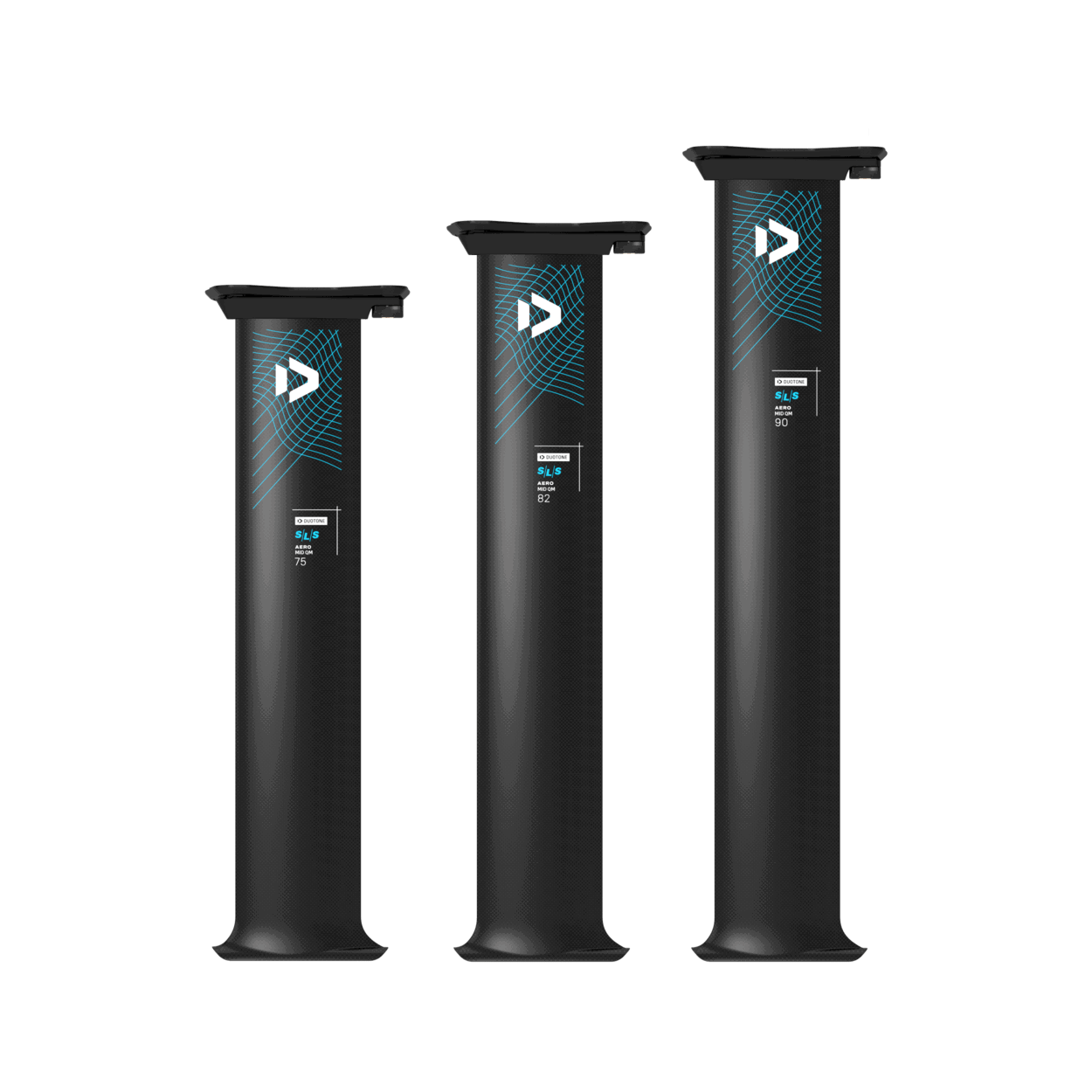

Our new Carbon Quickmount mast makes foiling easier than ever! No tools, no stress - simply leave your base plate on the board and mount your foil tool-free in just a few seconds in your favorite position every time you hit the water! The profile of the Aero Mid QM SLS mast is located between the SLS and D/LAB mast, aiming to reduce drag compared to the SLS mast while still achieving high strength values in both bending and torsional directions. This results in an incredibly fast and responsive riding experience, even with larger wingspan wings.Building upon the success of our Quickmount system, first introduced on our alu masts, it was clear to us that we needed to also implement this feature to our carbon mast customers.We've developed a new profile, with a thickness and chord length, half way between our thicker SLS mast and our thinner D/LAB mast. This makes it the perfect choice for those wanting the ease of use of the Quickmount system, in a premium and light carbon construction that fits our 3BS fuselages and D/LAB front wings.Available in 75 cm, 82 cm and 90 cm

PayPal Card Apple Pay Bank transfer
← Back to Foil

Description

Our new Carbon Quickmount mast makes foiling easier than ever! No tools, no stress - simply leave your base plate on the board and mount your foil tool-free in just a few seconds in your favorite position every time you hit the water! The profile of the Aero Mid QM SLS mast is located between the SLS and D/LAB mast, aiming to reduce drag compared to the SLS mast while still achieving high strength values in both bending and torsional directions. This results in an incredibly fast and responsive riding experience, even with larger wingspan wings.Building upon the success of our Quickmount system, first introduced on our alu masts, it was clear to us that we needed to also implement this feature to our carbon mast customers.We've developed a new profile, with a thickness and chord length, half way between our thicker SLS mast and our thinner D/LAB mast. This makes it the perfect choice for those wanting the ease of use of the Quickmount system, in a premium and light carbon construction that fits our 3BS fuselages and D/LAB front wings.Available in 75 cm, 82 cm and 90 cm

Caratteristiche

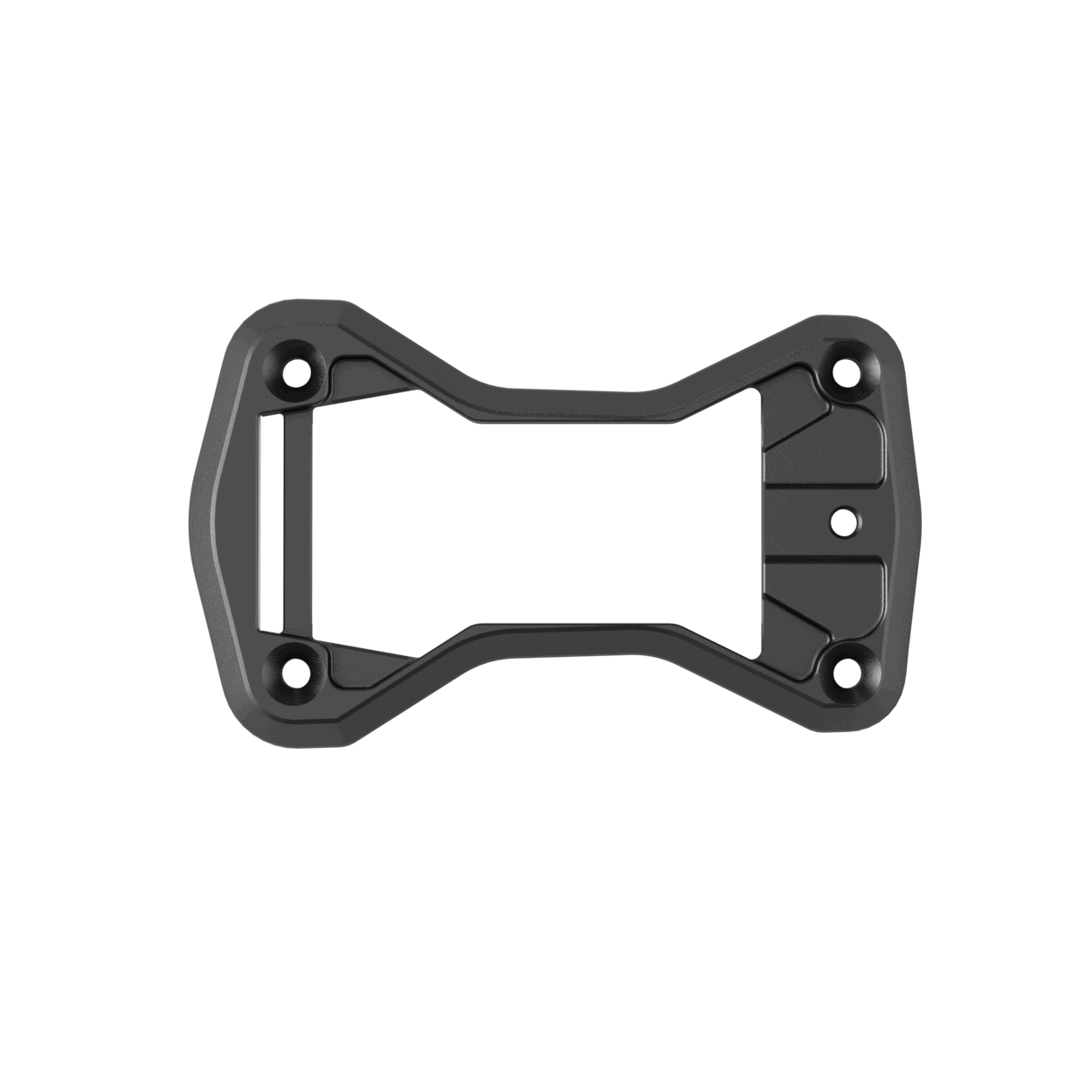

  • Two-piece concept: Base plate & mast adapter (Mono Claw)
  • Fast and easy foil mounting: Tool-free mast mounting to board/base plate
  • Same force: Same force transmission as a fixed plate
  • Standard dimensions: Standard foil mounting dimensions

Scheda tecnica

Lenght (cm)758290
Chord (mm)130130130
Thickness (thinnest point in mm)17.517.517.5
Weight (kg / TOLERANCE: +/- 5% POSSIBLE)1.802.16TBC
Screws 3BS3x M8x50 TX453x M8x50 TX453x M8x50 TX45
Rec. Torque15Nm M815Nm M815Nm M8
ConstructionPrepreg CarbonPrepreg CarbonPrepreg Carbon
DisciplinesWing, Prone, Kite, SUP, Downwind, PumpWing, Prone, Kite, SUP, Downwind, Pump, WindsurfWing, Prone, Kite, Windsurf
ConditionsFlat water lakes to small size surfAll water states - lakes to medium size surfAll water states - lakes to medium size surf
CharacterStrong, easy, maneuverable, direct response, compact in the airStrong, direct response, great allrounderStrong, direct response, extra room
Compatibility FuselagesD/LAB Wings + Tail / Aero AL 3BS / Fanatic & Duotone CarbonD/LAB Wings + Tail / Aero AL 3BS / Fanatic & Duotone CarbonD/LAB Wings + Tail / Aero AL 3BS / Fanatic & Duotone Carbon
